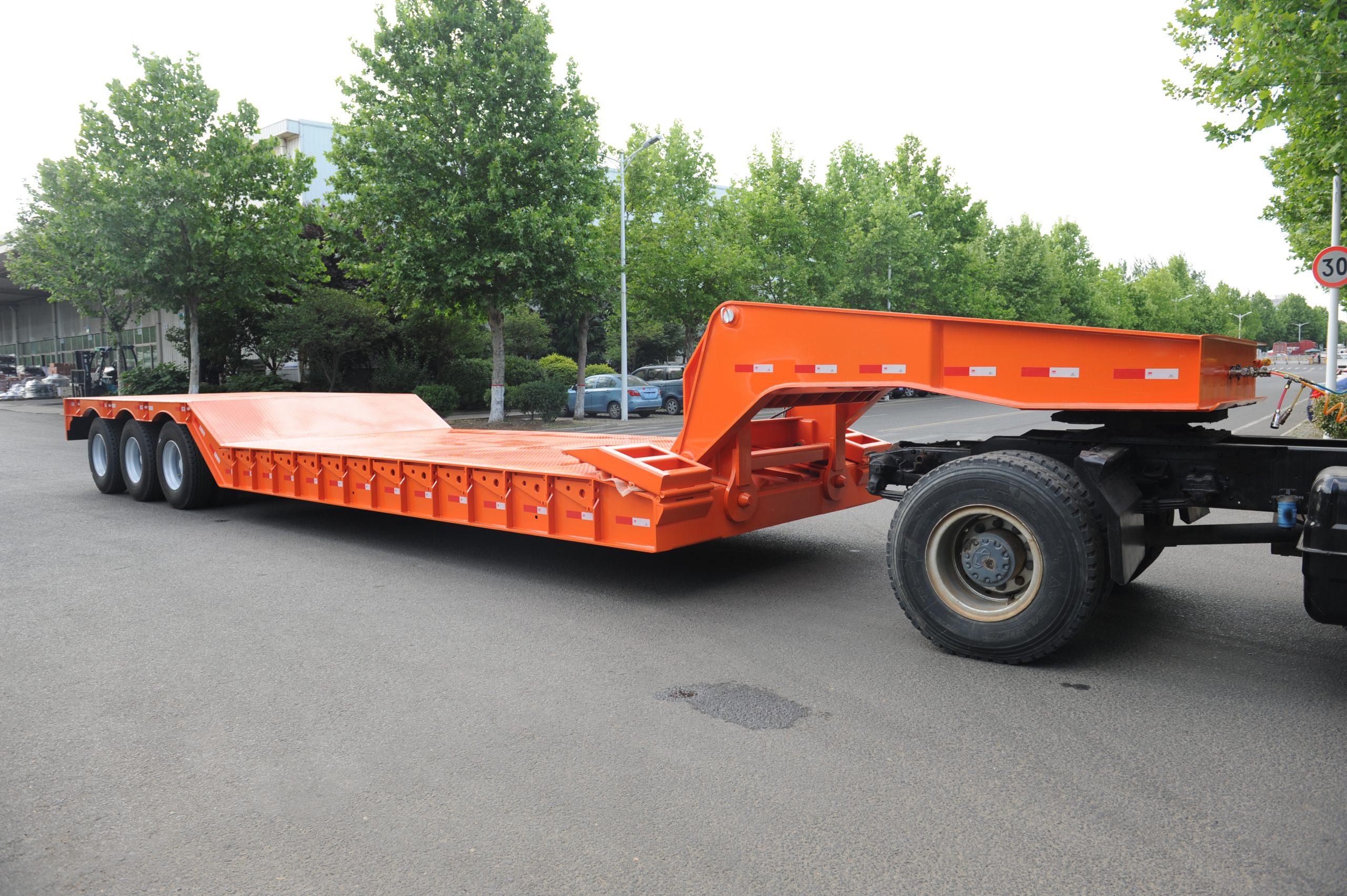

QDT9802TDP Detachable Gooseneck Low Flat Bed Semi-Trailer
The detachable gooseneck low flat bed semi-trailer is suitable for transporting heavy construction machinery, rail vehicles, mining machinery, agricultural machinery, and other heavy cargo. With a low center of gravity, it offers good stability and safety, can carry tall cargo, has excellent maneuverability, and is exported to countries like Europe and the United States.
China's leading manufacturer of various light, medium and heavy trucks and large buses
Our Products
Contact Us
Product Features:
The gooseneck is detachable, with a small ladder at the front section of the rear platform. When the front section touches down, the platform angle is small, facilitating the self-loading and unloading of large machinery from the front. It has the following features:
- The lifting load capacity can be designed up to 80 tons according to user requirements;
- Multi-angle positioning pins ensure safe and reliable vehicle connection;
- The detachable gooseneck design allows the front of the platform to touch down, with a small slope accessible via the ladder, making it easy for large machinery to move up and down;
- Optional electro-hydraulic directional valve, with the ability to add wired or wireless remote control modules;
- Optional diesel generator set, providing power source for the hydraulic system without requiring modifications.
Main Technical Parameters:
| 外形尺寸Overall Dimensions（mm） | 14500×3000×1980 |
| 总质量Total Mass（kg） | 80000 |
| 整备质量Curb Weight（kg） | 14520 |
| 额定载质量Rated Loading Capacity（kg） | 65480 |
| 轮胎规格Tire Specifications | 315/80R22.5-20RP |
| 钢圈规格Steel Wheel Specifications | 9.0×22.5 |
| 销轴距Kingpin to Axle Distance（mm） | 10190+1310+1310 |
| 轮距Track Width（mm） | 2220/2220/2220 |
| 钢板弹簧片数Number of Leaf Springs | -/10/10/10 |
| 轮胎数量Number of Tires | 12 |
| 轴数Number of Axles | 3 |
| 其他Additional Information | 主油缸φ140/60；支撑油缸φ63/32 Main Cylinders: φ140/60; Support Cylinders: φ63/32 |
| 标配无动力源，带手动多路阀、平衡阀，无油箱、泵 Standard Configuration: Non-powered, with manual multi-way valve and balance valve, no oil tank or pump | |
| 选装柴油机组，为液压系统提供动力源 Optional Diesel Generator Set: Provides power source for the hydraulic system | |
| 选装电液换向阀，可加装线控或遥控模块 Optional Electro-Hydraulic Directional Valve: Can be fitted with wired or wireless remote control modules | |
| 使用范围Application Range | 运输大型工程机械、矿用机械、农用机械、林业机械等 Transport large construction machinery, mining machinery, agricultural machinery, forestry machinery, etc. |
