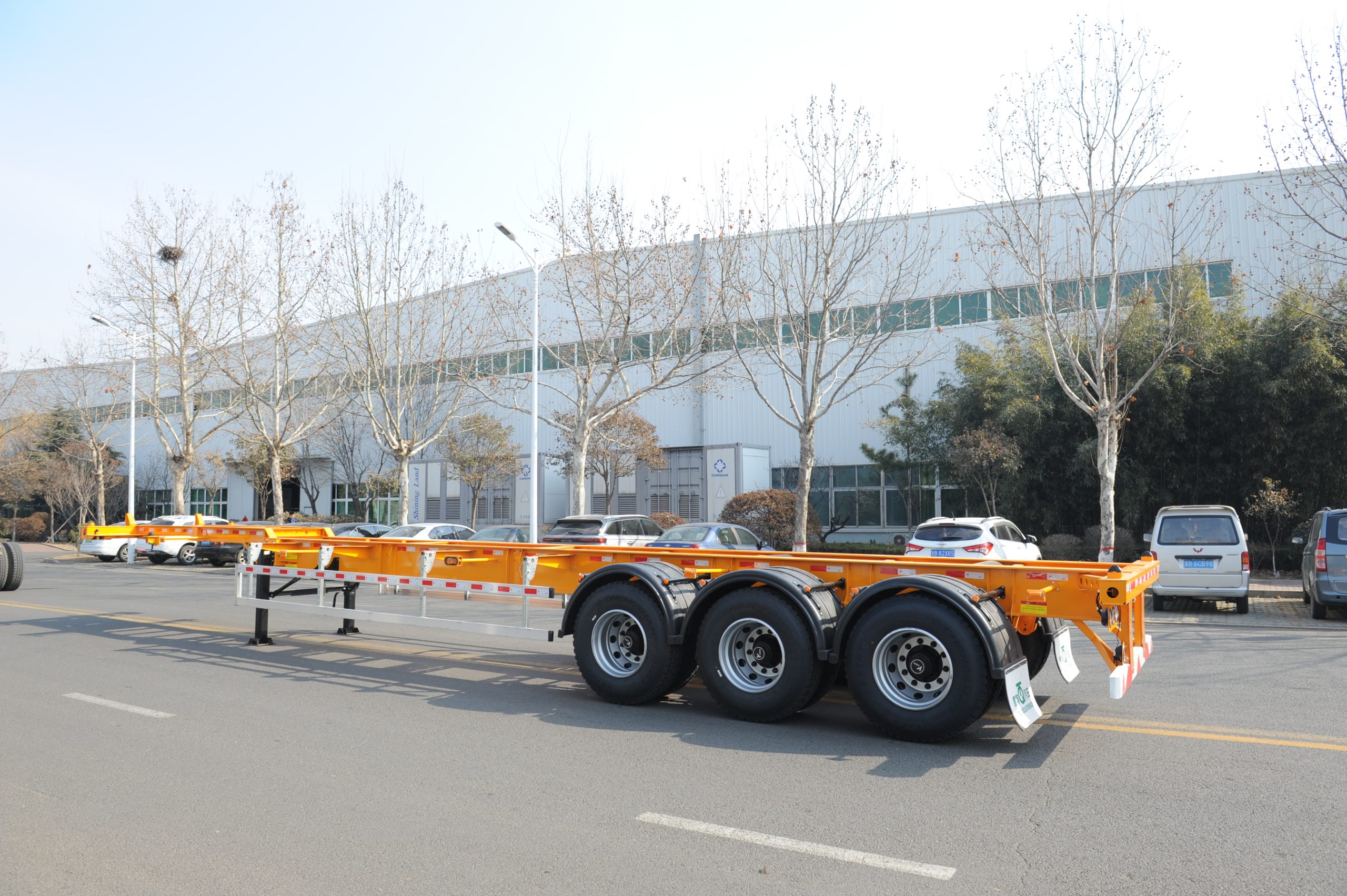

QDT9407TJZG Container Semi-Trailer
This semi-trailer is suitable for transporting 40-foot and 45-foot containers, featuring a lightweight and high-strength steel design that ensures high overall stability. It offers several advantages, including easy loading and unloading of containers, cost savings on transportation, increased efficiency, simplified logistics processes, and reliable safety performance.
China's leading manufacturer of various light, medium and heavy trucks and large buses
Our Products
Contact Us
Product Features:
It has the following features:
- Equipped with 13t Yuek integrated axles, factory-supplied axles, ensuring quality;
- JOST brand No. 50 tow pin and linkage support legs, providing high quality and reliability;
- Standard equipment includes 6 twist locks, capable of transporting 40/45 foot containers;
- Optionally available with 12 twist locks, additional installation of a movable lock beam enables dual support for two 20 foot containers (for use within the factory);
- The entire lighting system utilizes LED technology, complemented by fully sealed waterproof combination taillights, offering excellent sealing properties and low energy consumption;
- A hybrid lightweight design combining both steel and aluminum components, with the frame constructed from high-strength steel, while the guardrails, wheel covers, toolboxes, and air tanks are crafted from aluminium alloy.
Main Technical Parameters:
| 外形尺寸Overall Dimensions（mm） | 13937×2550,2480×1650,1410,1370,1340 |
| 总质量Total Mass（kg） | 40000 |
| 整备质量Curb Weight（kg） | 5300,4820 |
| 额定载质量Rated Loading Capacity（kg） | 34700,35180 |
| 轮胎规格Tire Specifications | 11.00R20 12PR，12R22.5 12PR |
| 钢圈规格Steel Wheel Specifications | 8.0-20，9.0×22.5 |
| 销轴距Kingpin to Axle Distance（mm） | 8200+1310+1310 |
| 轮距Track Width（mm） | 1840/1840/1840 |
| 钢板弹簧片数Number of Leaf Springs | -/4/4,-/7/7 |
| 轮胎数量Number of Tires | 12 |
| 轴数Number of Axles | 3 |
| 其他Additional Information | 140/170/210小鹅颈式Goose Neck |
