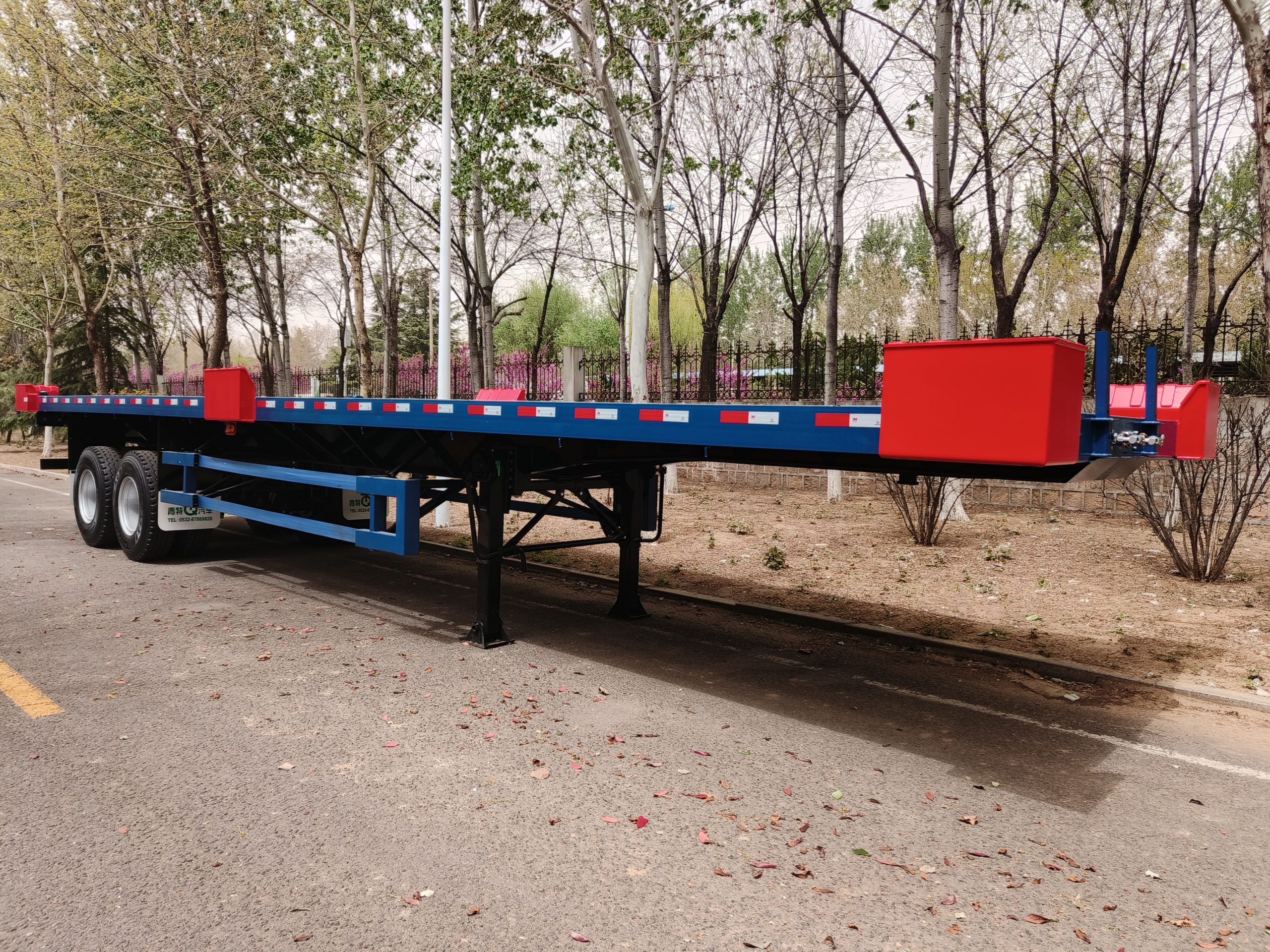

QDT9780TJZP Port Container Flatbed Semi-Trailer
This semi-trailer is suitable for transporting 20-foot and 40-foot railway containers, featuring lightweight and high-strength steel design that ensures high overall stability. It offers several advantages, including easy loading and unloading of containers, cost savings on transportation, increased efficiency, simplified logistics processes, and reliable safety performance.
China's leading manufacturer of various light, medium and heavy trucks and large buses
Our Products
Contact Us
Product Features:
It has the following features
- Equipped with 20t reinforced Yuek axles, factory-supplied axles, ensuring quality;
- JOST brand No. 90 towing pin and HLD30 single-acting outrigger, providing high quality and reliability;
- Main longitudinal beam height of 500mm, upper and lower flange plate thickness of 16mm, web plate thickness of 8mm, Q355B material, strong bearing capacity, and sufficient toughness.

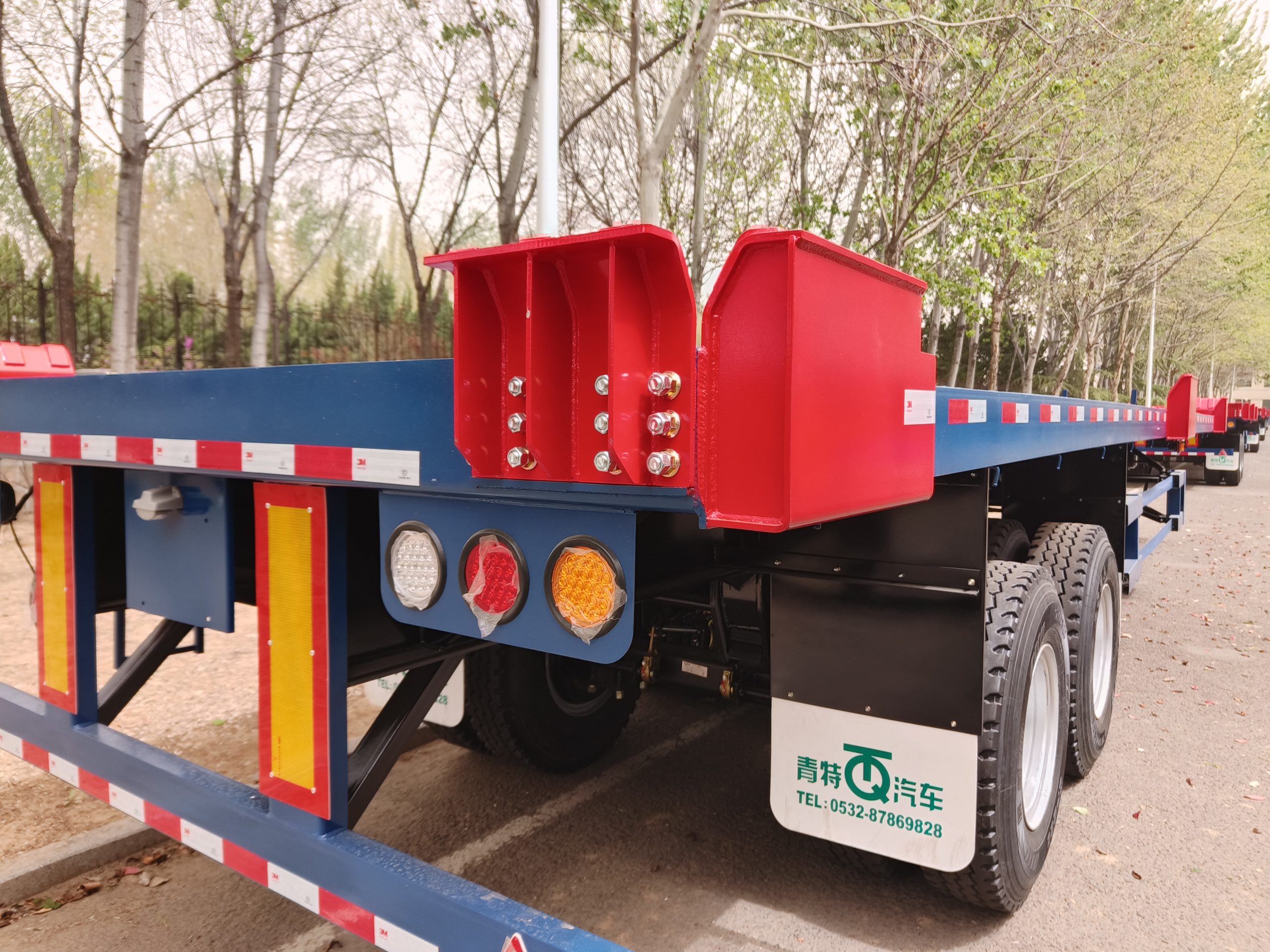

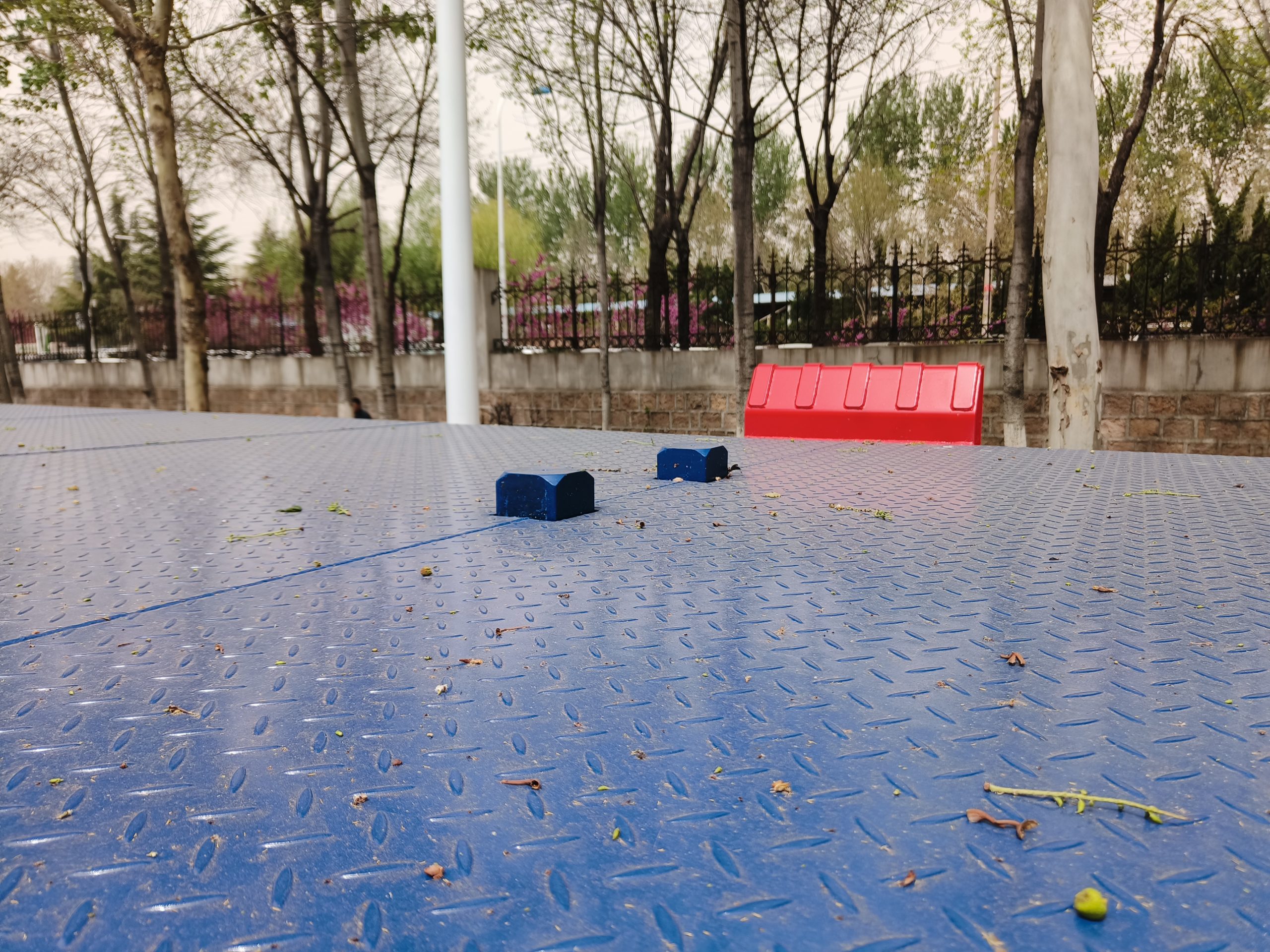

- Standard equipment includes 4 twist locks, centrally equipped with spring limit blocks and four-axle guide blocks, capable of transporting 20/40 foot railway containers;
- Enhanced with widened 120 suspensions and leaf springs, providing greater carrying capacity.
Main Technical Parameters:
| 外形尺寸Overall Dimensions（mm） | 12530×2850×1850 |
| 总质量Total Mass（kg） | 78000 |
| 整备质量Curb Weight（kg） | 8000 |
| 额定载质量Rated Loading Capacity（kg） | 70000 |
| 轮胎规格Tire Specifications | 12.00R20 18PR |
| 钢圈规格Steel Wheel Specifications | 8.5-20-18 |
| 销轴距Kingpin to Axle Distance（mm） | 7682+1310 |
| 轮距Track Width（mm） | 1870/1870 |
| 钢板弹簧片数Number of Leaf Springs | -/10/10 |
| 轮胎数量Number of Tires | 8 |
| 轴数Number of Axles | 2 |
| 其他Additional Information | 弹簧软带侧防护、后置蹬车爬梯 Spring Soft Belts Side Protection, Rear Access Ladder |
| 使用范围Application Range | 港口铁路集装箱运输 Port Railway Container Transport |
