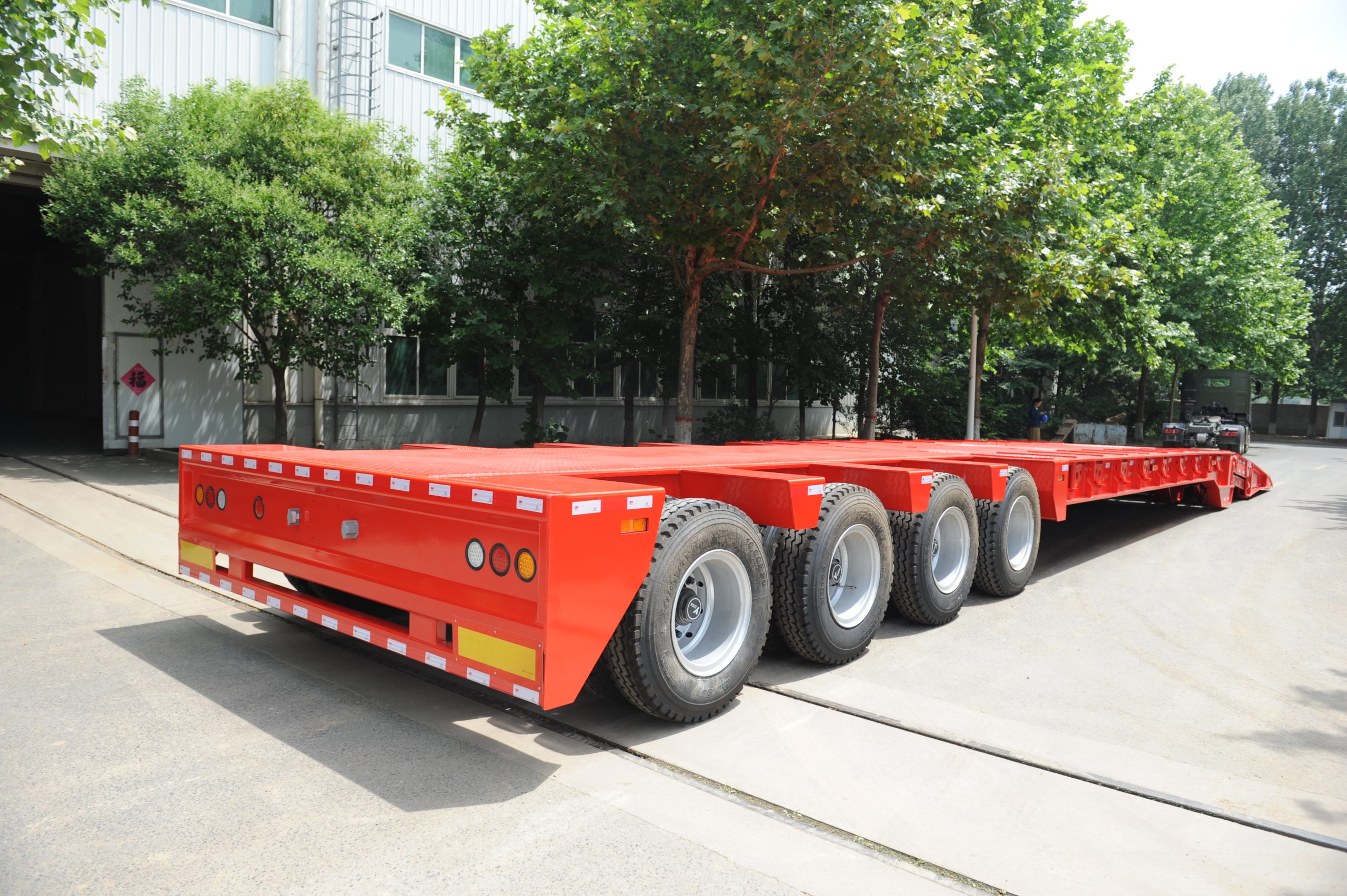

QDT9990TDP Gooseneck Folding Low Flat Bed Semi-Trailer
The gooseneck folding low flat bed semi-trailer is suitable for transporting heavy construction machinery, rail vehicles, mining machinery, agricultural machinery, and other heavy cargo. It boasts a low center of gravity, a small climbing angle, good stability and safety, the capability to transport tall cargo, excellent maneuverability, and is exported to countries like Europe and the United States.
China's leading manufacturer of various light, medium and heavy trucks and large buses
Our Products
Contact Us
Product Features:

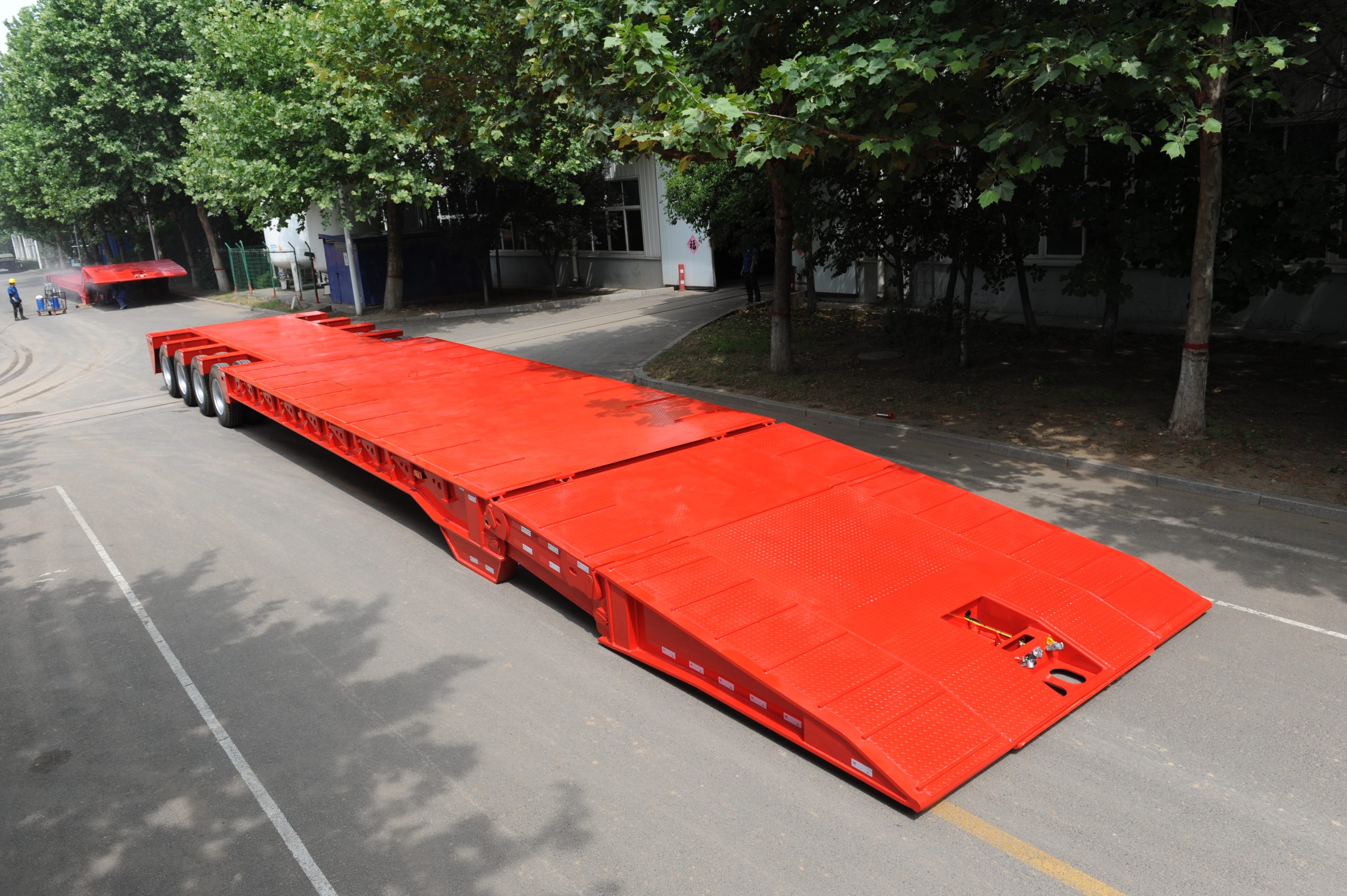

Unlike conventional rear ladders and detachable gooseneck low beds, this vehicle offers simplified operation with its own diesel engine power system. It uses a hydraulic system to control the elevation of the front section of the platform and to extend or retract the gooseneck assembly. When fully extended, the gooseneck and the front ground contact of the platform align with the ground, allowing machinery and equipment to drive onto the platform from the front. Subsequently, the hydraulic system lifts the platform and adjusts the gooseneck position, enabling the tractor and semi-trailer to connect smoothly. It has the following features:
- High lifting capacity, capable of lifting up to 100 tons, with a horizontal load exceeding 120 tons;
- Dual-cylinder V-shaped air-cooled diesel engine, with four-stroke direct injection, offering low fuel consumption, compact size, and robust reliability;
- A dual-mode manual and electric electro-hydraulic directional valve, complemented by an industrial remote control device, providing safety, simplicity, and efficiency;
- Simultaneous operation of both the outrigger cylinders and the gooseneck cylinders to control the body’s stance, achieving precise positioning and easy, unimpeded engagement and disengagement of safety locks;
- A parallelogram linkage design ensures precise control of the gooseneck’s horizontal movements;
- Interchangeable recessed pull-out towing pins in sizes 50# and 90#, designed with a rational structure to accommodate various towing brackets;
- An exceptionally shallow loading ramp angle of 8.5°, demonstrating high adaptability and meeting the loading demands of 99% of vehicles in the market.
Main Technical Parameters:
| 外形尺寸 Overall Dimensions（mm） | 18654×3500×1960 |
| 总质量Total Mass（kg） | 125000 |
| 整备质量Curb Weight（kg） | 25000 |
| 额定载质量Rated Loading Capacity（kg） | 100000 |
| 轮胎规格Tire Specifications | 10.00R20 18PR |
| 钢圈规格 Steel Wheel Specifications | 7.5-20-18 |
| 销轴距 Kingpin to Axle Distance（mm） | 12797+1310+1310+1310 |
| 轮距Track Width（mm） | 2800 /2800/2800/2800 |
| 钢板弹簧片数 Number of Leaf Springs | -/10/10/10/10 |
| 轮胎数量Number of Tires | 16 |
| 轴数Number of Axles | 4 |
| 其他Additional Information | 举升油缸缸径140/杆径90，带双向液压锁 Lifting Cylinder Specifications: Bore diameter 140mm / Rod diameter 90mm, equipped with a bidirectional hydraulic lock. |
| 伸缩油缸缸径110/杆径60，带平衡阀 Telescopic Cylinder Specifications: Bore diameter 110mm / Rod diameter 60mm, equipped with a balance valve. | |
| 12KW双缸风冷柴油机（远程油门、远程电启动） 12KW Dual Cylinder Air-Cooled Diesel Engine (with remote throttle and remote electric start). | |
| 手电两用换向阀,配遥控模块 Manual and Electric Dual-Use Directional Valve, with a remote control module. | |
| 使用范围Application Range | 运输大型工程机械、矿用机械、农用机械、林业机械等 Transport large construction machinery, mining machinery, agricultural machinery, forestry machinery, etc. |
